Katana Post 750 vs 600 Fork Tubes
This is a identification post for the differences between the 98~06 750 fork tubes vs the 98~06 600 fork tubes. When swapping parts this is good to know as the oil lock off a post 750 will cover the damping holes of a post 600. Doing that will cause issues with the compression damping side of things.

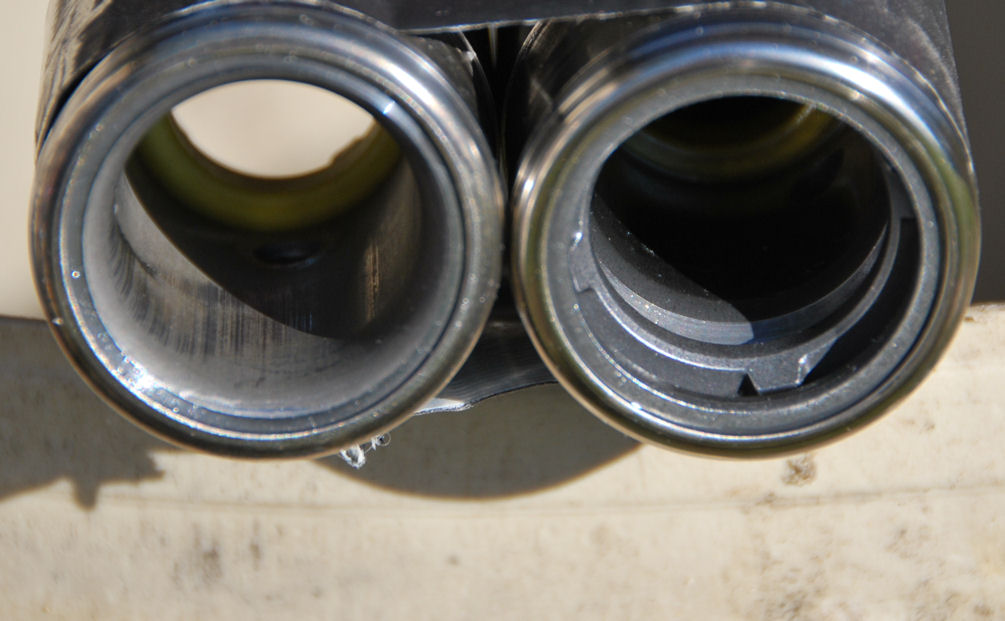

Here is a image of the ends with the 98~06 600 fork tube on the left and the 98~06 750 on the right.

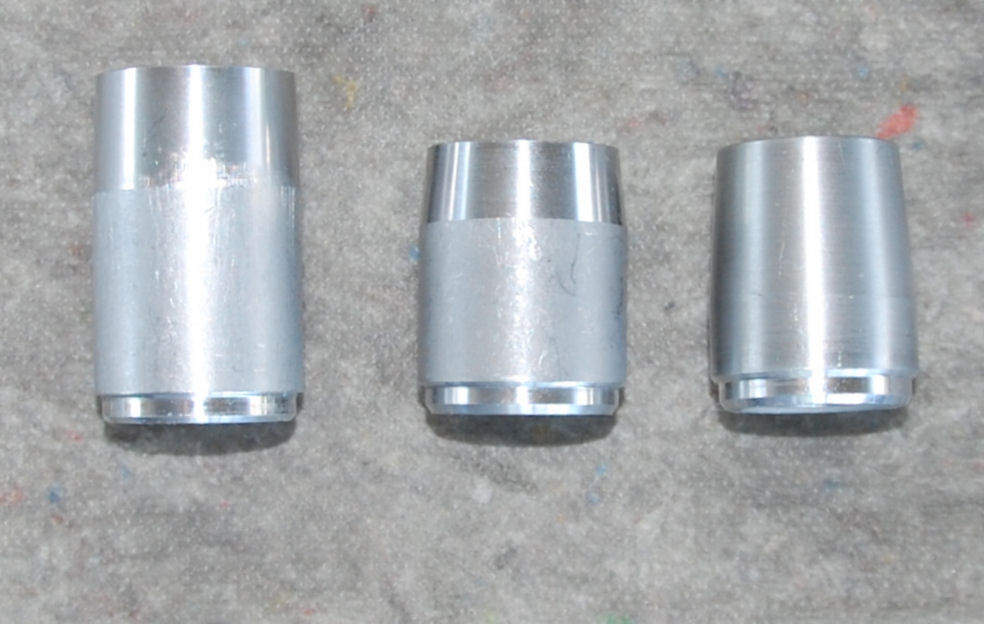

Here is a image of the oil locks for the 98~06 600 and the 98~06 750 as well as a 98~06 600 oil lock that I modified.
The 98~06 750 is on the left, 98~06 600 is center & a modified 98~06 600 on the right.
